With the continuous development of coating technology and improvement of technology of spraying machine, still in the moment, the reform of the industrial automation production requirements gradually improve, production safety, environmental protection production principle to carry out ceaselessly, the emergence of spraying robot has become a inevitable, and the high-tech spraying equipment can also be very good to cater to the requirements of various kinds of artifacts.

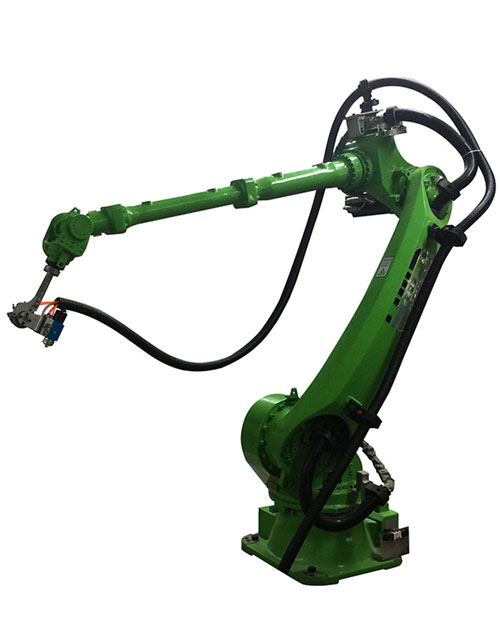

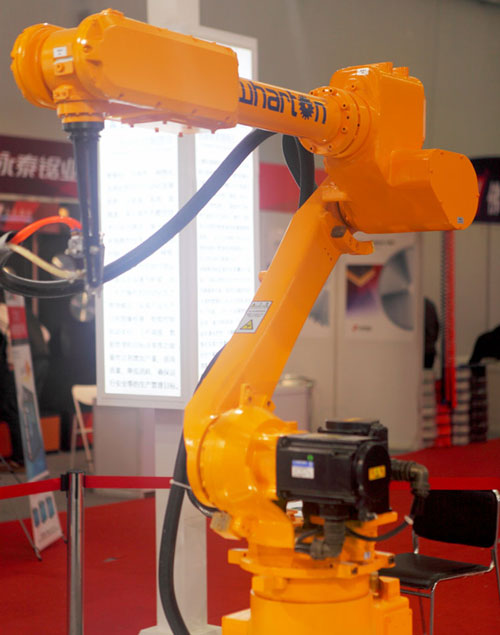

Spraying robot is also called spraypaintingrobot. It is an industrial robot that can automatically spraypaint or spray other coatings. Spray paint robot is mainly composed of robot body, computer and the corresponding control system, mostly using 5 or 6 degrees of freedom joint structure, the arm has a large movement space, and can do complex trajectory movement, the wrist is generally 2 ~ 3 degrees of freedom, flexible movement. The more advanced spray-painting robot wrist USES a flexible wrist, which can be bent in all directions and can be rotated. Its action is similar to that of a human wrist, which can be easily extended into the workpiece through a smaller hole and sprayed on its internal surface. Spray paint robot generally USES hydraulic drive, has the characteristics of fast movement, good explosion-proof performance, etc. Spray paint robot is widely used in automobile, instrument, electric appliances, enamel and other technical production departments.

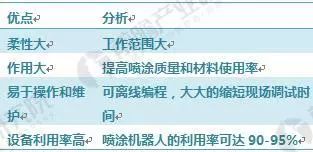

The main advantages of spraying robot are as follows:

Source: prospective industry research institute

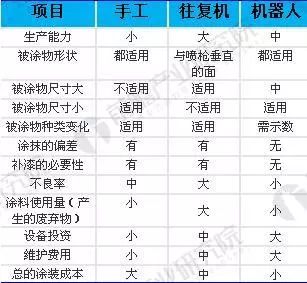

Comparison between spraying robot and manual spraying and spraying to compound machine:

Thus it can be seen that with the continuous upgrading of spraying technology, the requirements are becoming higher and higher, and the transformation of spraying robot is also in progress. It is believed that with the continuous development of science and technology in the future, modern spraying technology will also produce a qualitative leap.

According to GGII data, the sales volume of spraying robots in China reached 0.45 million in 2016, up 32.35% year-on-year, and the scale of China's spraying system integration market reached 7.21 billion yuan, up 22.62% year-on-year. GGII expects that in the next four years, the market size of spraying system integration will maintain a steady growth rate of over 20%. By 2020, the sales volume will exceed 13,000 units, and the market size is expected to exceed 12 billion yuan.
